GPS Vario-Altimeters

Know where you are and what the wind is doing!

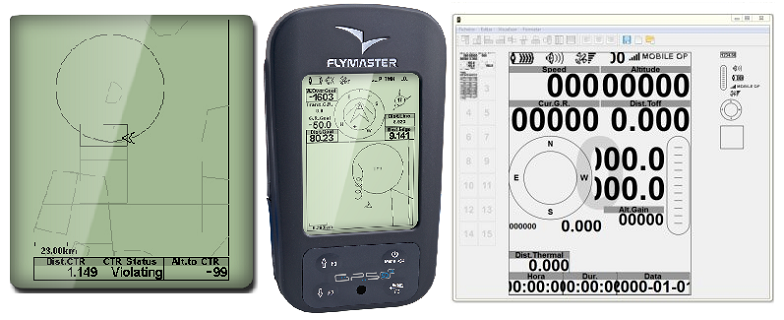

FLYMASTER GPS M - £519

GPS Alti-Vario with optional FLARM

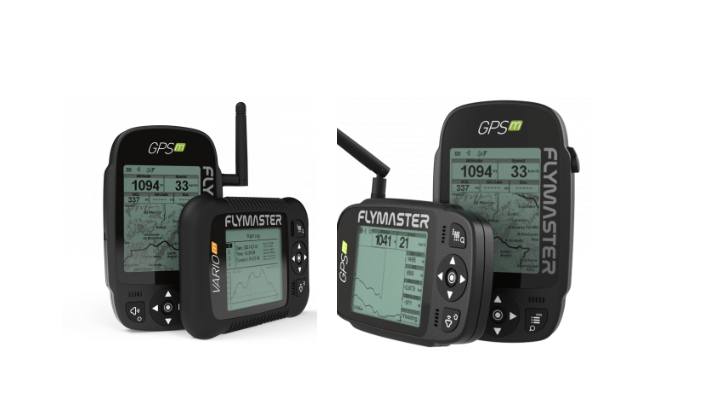

Flymaster GPS-M FLARM

FLYMASTER GPS-M – MONO SCREEN GPS ALTI VARIO WITH OPTIONAL FLARM MODULE

This Instruments with FANET or FLARM module is eligible for a £250 rebate from the CAA, details can be found here along with the application form.

The GPS-M s the ideal instrument for flying non-competition XC flights.

The GPS-M features a high contrast highly sunlight readable monochrome display for mapping and data fields etc.

...A protective rubber Bumper Case is available to safeguard the instrument from bumps and drops.

User definable pages, 8 in portrait and 8 in landscape mode (each page can be draw using FIM software).
Configurable graphical elements (depending of the element several parameters can be set by the user ex. Size, Border, …)
Configurable data field elements (User can change size, border, title, Font, …)

Page Trigger Events (page switches automatically if a specific event occurs)
Airspace warning
Entering thermal
Transition (leaving thermal)
Arriving at turnpoint

Configurable audible alerts:
- Airspace
- Turnpoint complete

VARIOMETER/ALTIMETER FEATURES
Buzzer/near thermal sound.
Ultra sensitive Variometer with 10 readings per second and 10 cm resolution.
Configurable vario digital filter and integration values.
Fully configurable Vario Sound (frequency, increments, frequency/vertical speed relation,….).
6 Sound Levels (configurable by menu, or using a key).
Automatic mute, keeps vario silent until takeoff.
Altitude adjustment using QNH.
Automatic altitude adjustment from GPS.
2 independent altimeters.

MEMORY FEATURES
3D flight logger IGC format.
Storage for >300000 track points.
Up to 248 flights.
448 Waypoints.
3D AIRSPACE
Compatibility with Open Air format (upload of files using Designer).
Display of restricted areas in map
Adjustable warning vertical distance to a restricted area
Adjustable warning horizontal distance to a restricted area
Display of shortest Vertical, and Horizontal, distance to restricted area
Restricted area alarms (Altitude imminent, Position imminent, Violation, …)
Critical Airspace page (displays information about areas that are closer than a defined distance)
Worldwide Airspace database (SD card required)

CROSS COUNTRY FEATURES
Exclusive Thermal Ball indicator
Several specific data fields like Distance to take off, current and average glide ratio, average speed, etc.
Distance to last thermal indexed with altitude
Goto waypoint
Multiple waypoint route
Wind Speed and Direction (GPS based calculations)
Automatic altitude gain profiler
Nearby Landings (Displays Required Glide Ratio and distance to all the Landings which can be reached)

ROUTE FEATURES
Several Glides Ratios (average, to next,…)
Easy route definition
Route Navigation, configurable safety/risk margin on turn points.
Route Map (trace with thermal indication)

INTERFACING
Compatible with MacOS (10.13 and higher), Windows (8/10)

Flymaster DESIGNER.
Using the designer users can add, resize or move objects, and increase the font size of text, allowing users of any age (and eye-sight quality) to get the most out of their unit.
The Flymaster Designer is a free application allowing users to design and manage, the screen layout of Flymaster instruments, and update the firmware. An unlimited number of layouts can be created,and shared with other users.
Thermal efficiently
Flymasters’ unique thermal ball will help you find the thermal core quicker and the zero buzzer makes sure don’t fly past lift.

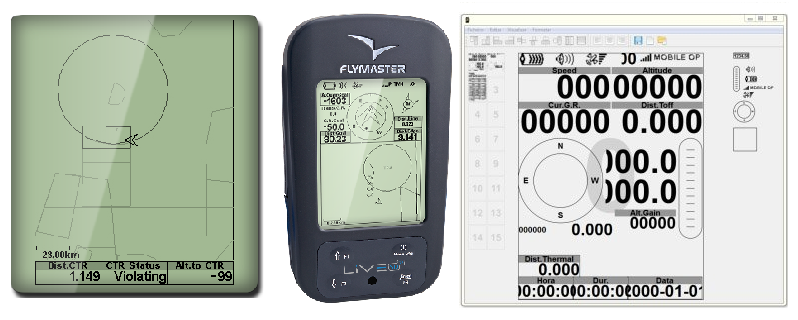

The Thermal Core Map is one of the most useful, and exclusive, features of the GPS-M. The GPS-M lacks only the competition optimisation firmware of the Live.
